VR Resolver RO Series DG Series JAPANESE
  VR Resolver  Rotasyn made by Admotec , equivalent of 1X-BRX Smartsyn Tamagawa seiki

  Standard  Frameless Type "RO Series"  Size Table

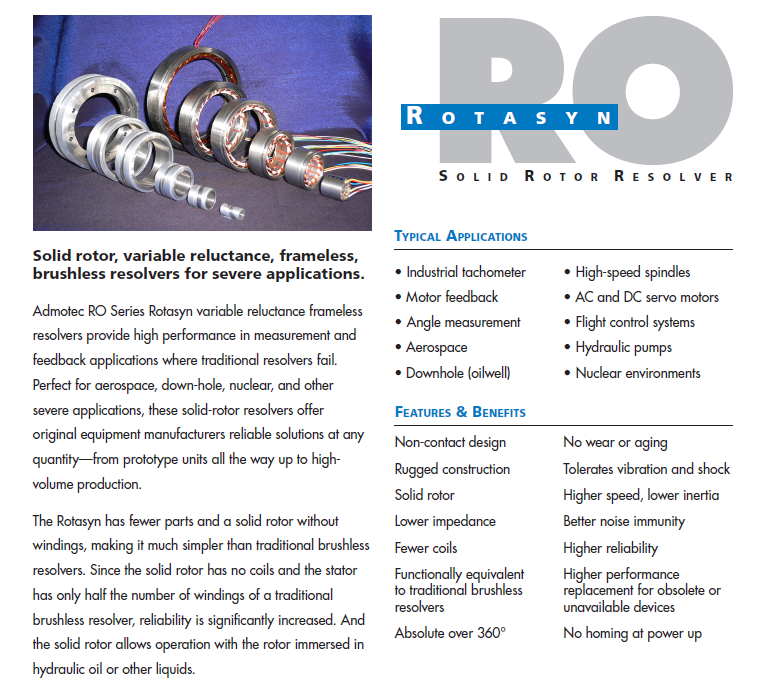

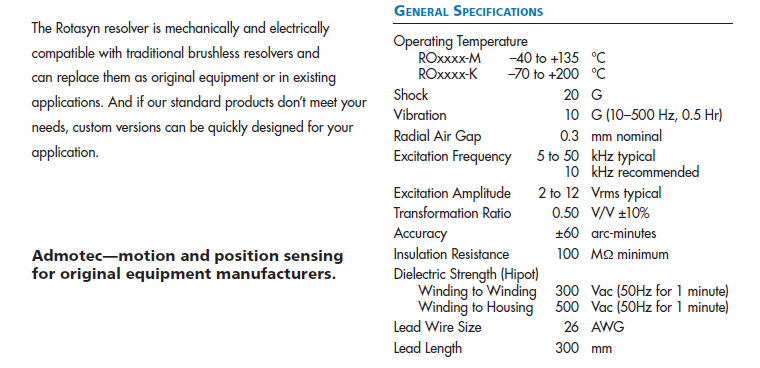

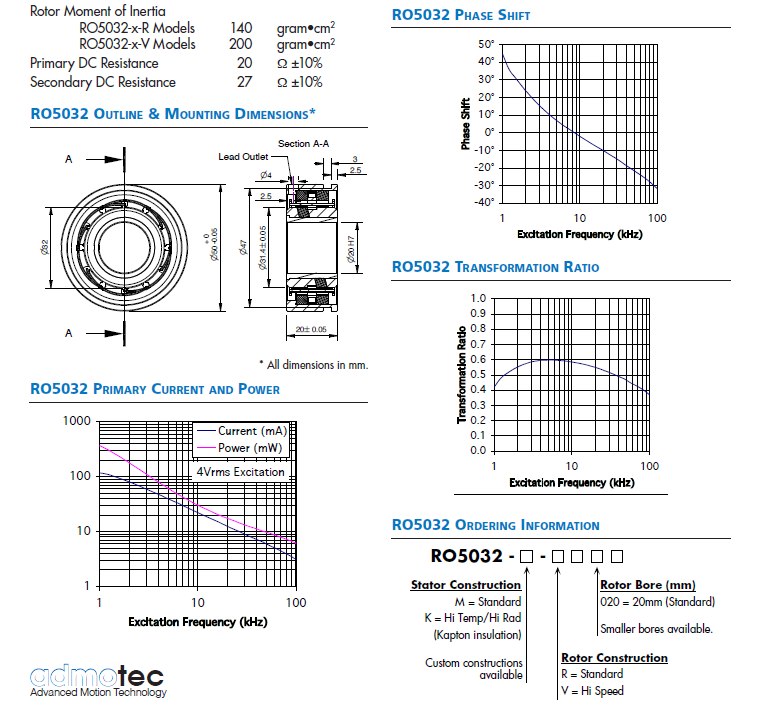

Admotec Rotasyn :  RO Series (1X-VR) Specifications of the 4 items in bold are on this page.
1/10 "
Size
Model
RO-xx
Stator (S) S-R
Gap
Rotor (R) Ht.
Axis
1/10 "
Size
Model
RO-xx
Stator (S) S-R
Gap
   Rotor (R)     Ht.
Axis
O.D.  I.D. O.D. I.D.   O.D. I.D.    O.D.        I.D.

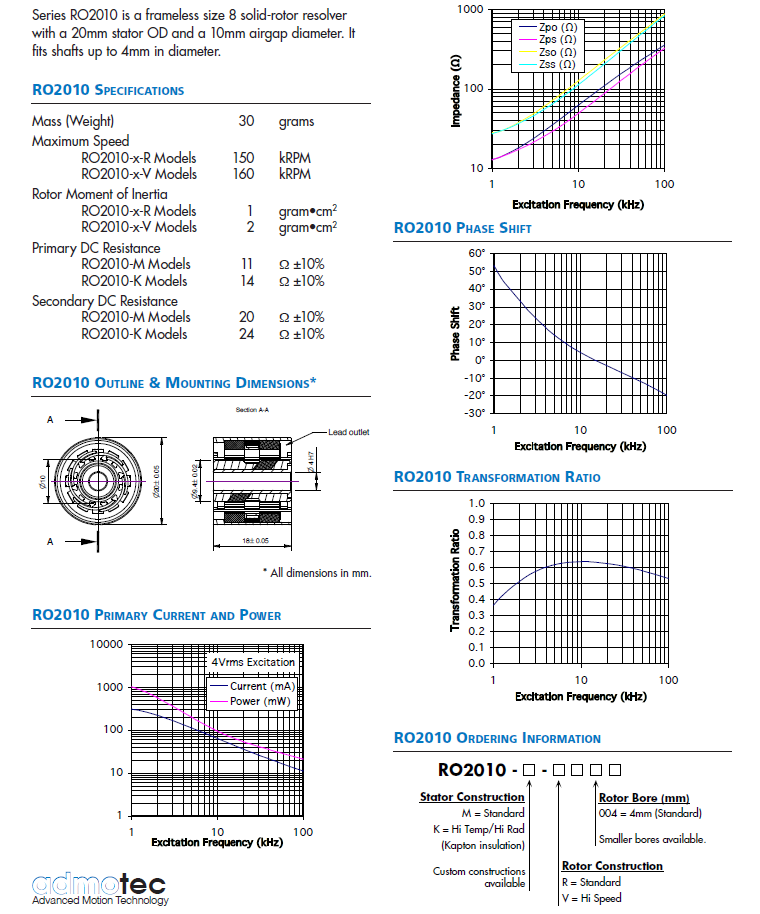

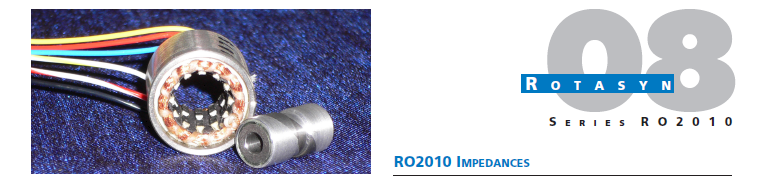

08 2010 Φ20 Φ10 0.3 Φ  9.4 Φ4  18 40 10080 Φ100 Φ  80 0.5 Φ  79 Φ  65 22
10 2613 Φ26 Φ13 0.3 Φ12.4 Φ6.35 20 50 125100 Φ125 Φ100 0.5 Φ  99 Φ  85 22

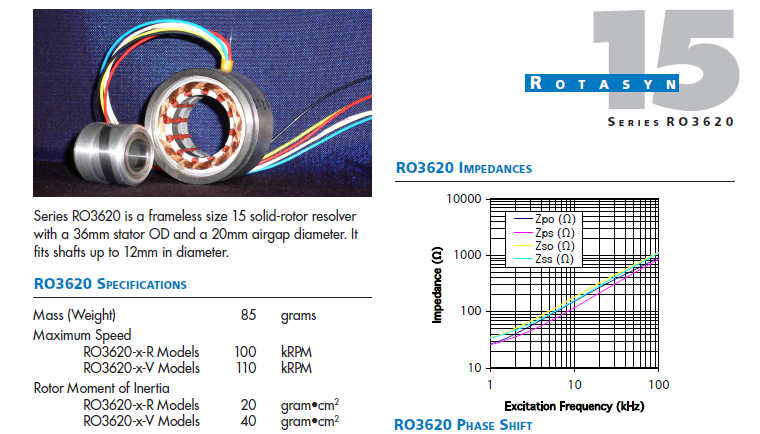

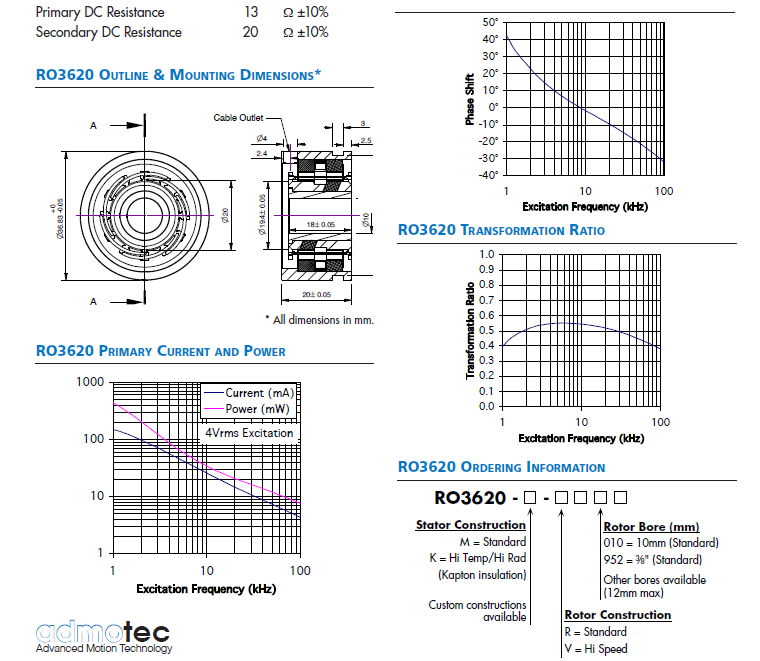

15 3620 Φ36.83 Φ20 0.3 Φ19.4 Φ10(12) 20 57 145125 Φ145 Φ125 0.5 Φ124 Φ107 22

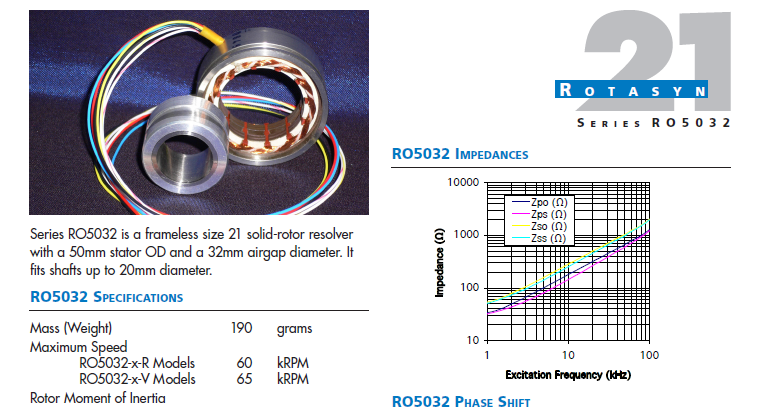

21 5032 Φ50 Φ32 0.3 Φ31.4 Φ20(22) 20 72 185160 Φ185 Φ160 0.5 Φ159 Φ145 37
24 6040 Φ60 Φ40 0.3 Φ39.4 Φ30   20 96 240200 Φ240 Φ200 0.5 Φ199 Φ185 38

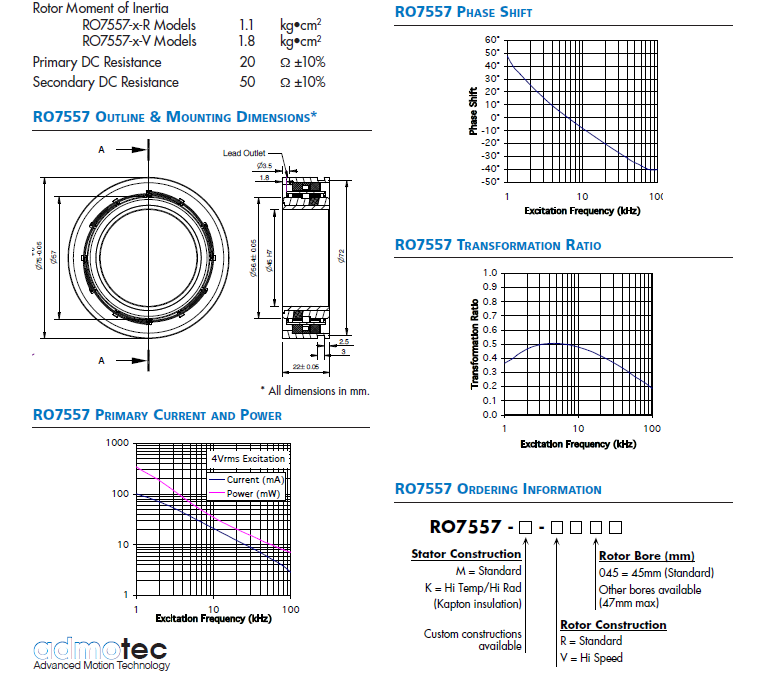

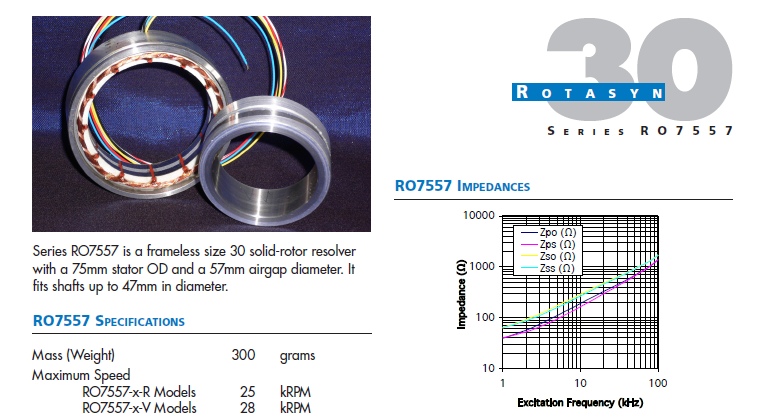

30 7557 Φ75 Φ57 0.3 Φ56.4 Φ45(47) 22 116 290260 Φ290 Φ260 0.5 Φ259 Φ240 38
34 8565 Φ85 Φ65 0.3 Φ64.4 Φ55   22 - - - - - - - -
The rotor bore sizes in (    ) are also available.
